- Dòng sản phẩm: RH2836W/RH2846W/RH2866W
- Số lượng sản phẩm trong kho: Vẫn còn hàng
Xu hướng tìm kiếm: Bộ khuếch đại công suất

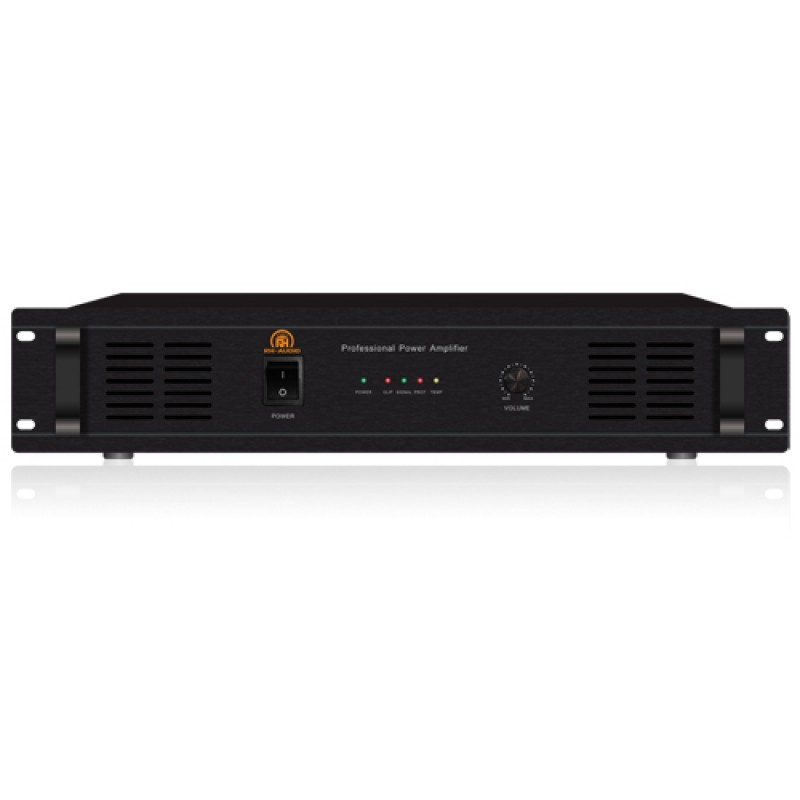

Functional Description：
The PA power amplifiers are designed to operate under a variety of conditions without fail,modles with much
higher power support the conditions where high power level of speakers or group of speakers are needed.
The power amplifiers features one line input or one line output,360/460/660/ watts available with
either 70/100-volt or 4 to 16 ohms(Ω) loads.
And features complete protection is provided for output short ircuit,overload,hightemperature,peak current limiters.
※ RCA and XLR socket for convenient link
※ 70V, 100V and 4~16Ω outputs
※ Output short circuit,overload,high temperature protection and alarm
Specifications:
|
Model |
RH2836W |
RH2846W |
RH2866W |
|
Rated Power |
350W |
450W |
650W |
|
Output Mode |
4-16 ohms(Ω)；70V/100V |
||
|
MIC Input |
10k ohms(Ω) 0.775V (0 dB) ,Unbalanced |
||
|
AUX Input |
10k ohms(Ω) 0.775V (0 dB) ,Unbalanced |
||
|
Frequency Response |
60Hz~15kHz(±3dB) |
||
|
THD |
<0.5% at 1kHz,1/3 rated power |
||
|
S/N |
> Db |
||
|
Cooling |
DC 12V FAN |
||
|
LED Indicators |
POWER,SIGNAL, CLIP,PROTECT |
||
|
Power supply |
Optional |
||
|
Power Consumption |
485W |
620W |
880W |
|
Dimensions |
89(H)×483(W)×366(D)mm |
||
|
Net weight |
15.2kg |
17.7kg |
19.8kg |
